RB型(外環分割型,內環旋轉用)

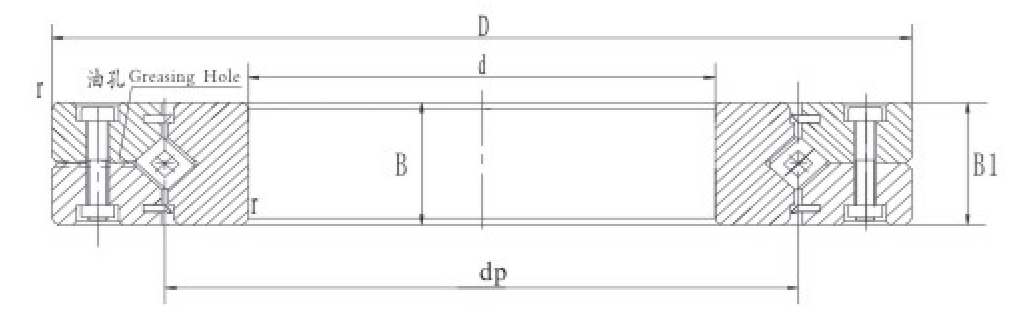

RB系列型號為交叉圓柱滾子軸承的基本型,內、外環尺寸被最小限度的小型化,其構造是外環為分割型,內環為一體設計,適合於要求內環旋轉精度高的部位。
型號 Bearing No. | 外形尺寸 Boundary dimensions | 靠肩尺寸 | 基本額定負荷 Basic load ratings |
|
d | D | dp | B B1 | 油孔 | rs(最小) | ds | Dh | 動負荷 | 靜負荷 |
mm | C(KN) | Co(KN) |
RB3010 | 30 | 55 | 41.5 | 10 | 1 | 0.6 | 37 | 47 | 7.35 | 8.36 |
RB3510 | 35 | 60 | 46.5 | 10 | 1 | 0.6 | 41 | 51.5 | 7.64 | 9.12 |
RB4010 | 40 | 65 | 51.5 | 10 | 1 | 0.6 | 47.5 | 57.5 | 8.33 | 10.6 |
RB4510 | 45 | 70 | 56.5 | 10 | 1 | 0.6 | 51 | 61.5 | 8.62 | 11.3 |
RB5013 | 50 | 80 | 64 | 13 | 1.5 | 0.6 | 57.4 | 72 | 16.7 | 20.9 |
RB6013 | 60 | 90 | 74 | 13 | 1.5 | 0.6 | 68 | 82 | 18 | 24.3 |
RB7013 | 70 | 100 | 84 | 13 | 1.5 | 1 | 78 | 92 | 19.4 | 27.7 |
RB8016 | 80 | 120 | 98 | 16 | 1.5 | 1 | 91 | 111 | 30.1 | 42.1 |
RB9016 | 90 | 130 | 108 | 16 | 1.5 | 1.5 | 98 | 118 | 31.4 | 45.3 |
RB10016 | 100 | 140 | 119.3 | 16 | 1.5 | 1.5 | 109 | 129 | 31.7 | 48.6 |
RB10020 | 100 | 150 | 123 | 20 | 1.5 | 1.5 | 113 | 133 | 33.1 | 50.9 |
RB11012 | 110 | 135 | 121.8 | 12 | 1.5 | 1 | 117 | 127 | 12.5 | 24.1 |
RB11015 | 110 | 145 | 126.5 | 15 | 1.5 | 1 | 122 | 136 | 23.7 | 41.5 |
RB11020 | 110 | 160 | 133 | 20 | 1.5 | 1.5 | 120 | 143 | 34 | 54 |
RB12016 | 120 | 150 | 134.2 | 16 | 1.5 | 1.5 | 127 | 141 | 24.2 | 43.2 |
RB12025 | 120 | 180 | 148.7 | 25 | 2 | 1 | 133 | 164 | 66.9 | 100 |
RB13015 | 130 | 160 | 144.5 | 15 | 1.5 | 2 | 137 | 152 | 25 | 46.7 |
RB13025 | 130 | 190 | 158 | 25 | 2 | 1 | 143 | 174 | 69.5 | 107 |
RB14016 | 140 | 175 | 154.8 | 16 | 1.5 | 2 | 147 | 162 | 25.9 | 50.1 |
RB14025 | 140 | 200 | 168 | 25 | 2 | 1.5 | 154 | 185 | 74.8 | 121 |
RB15013 | 150 | 180 | 164 | 13 | 1.5 | 2 | 157 | 172 | 27 | 53.5 |
RB15025 | 150 | 210 | 178 | 25 | 2 | 1 | 164 | 194 | 76.8 | 128 |
RB15030 | 150 | 230 | 188 | 30 | 3 | 2 | 173 | 211 | 100 | 156 |
RB16025 | 160 | 220 | 188.6 | 25 | 2 | 2 | 173 | 204 | 81.7 | 135 |
RB17020 | 170 | 220 | 191 | 20 | 1.5 | 2 | 184 | 198 | 29 | 62.1 |
RB18025 | 180 | 240 | 210 | 25 | 2 | 2 | 195 | 225 | 84 | 143 |
RB19025 | 190 | 240 | 211.9 | 25 | 1.5 | 2 | 202 | 222 | 41.7 | 82.9 |
RB20025 | 200 | 260 | 230 | 25 | 2 | 2.5 | 215 | 245 | 84.2 | 157 |
RB20030 | 200 | 280 | 240 | 30 | 3 | 2.5 | 221 | 258 | 114 | 200 |
RB20035 | 200 | 295 | 247.7 | 35 | 3 | 2.5 | 225 | 270 | 151 | 252 |
RB22025 | 220 | 280 | 250.1 | 25 | 2 | 2.5 | 235 | 265 | 92.3 | 171 |
RB24025 | 240 | 300 | 269 | 25 | 2 | 3 | 256 | 281 | 68.3 | 145 |
RB25025 | 250 | 310 | 277.5 | 25 | 2 | 3 | 265 | 290 | 69.3 | 150 |
RB25030 | 250 | 330 | 287.5 | 30 | 3 | 3 | 269 | 306 | 126 | 244 |
RB25040 | 250 | 355 | 300.7 | 40 | 3.5 | 3 | 275 | 326 | 195 | 348 |
RB30025 | 300 | 360 | 328 | 25 | 2 | 3 | 315 | 340 | 76.3 | 178 |
RB30035 | 300 | 395 | 345 | 35 | 3 | 3 | 322 | 368 | 183 | 367 |
RB30040 | 300 | 405 | 351.6 | 40 | 3.5 | 3 | 326 | 377 | 212 | 409 |
RB35020 | 350 | 400 | 373.4 | 20 | 1.5 | 3.5 | 363 | 383 | 54.1 | 143 |
RB40035 | 400 | 480 | 440.3 | 35 | 3 | 3.5 | 422 | 459 | 156 | 370 |
RB40040 | 400 | 510 | 453.4 | 40 | 3.5 | 1.5 | 428 | 479 | 241 | 531 |
RB45025 | 450 | 500 | 474 | 25 | 1.5 | 1.5 | 464 | 484 | 61.7 | 182 |
RB50025 | 500 | 550 | 524.2 | 25 | 1.5 | 1.5 | 514 | 534 | 65.5 | 201 |
RB50040 | 500 | 600 | 548.8 | 40 | 3 | 3.5 | 526 | 572 | 239 | 607 |
RB50050 | 500 | 625 | 561.6 | 50 | 3.5 | 3.5 | 536 | 587 | 267 | 653 |
RB60040 | 600 | 700 | 650 | 40 | 3 | 4 | 627 | 673 | 264 | 721 |
RB70045 | 700 | 815 | 753.5 | 45 | 3 | 4 | 731 | 777 | 281 | 836 |
RB80070 | 800 | 950 | 868.1 | 70 | 4 | 5 | 836 | 900 | 468 | 1330 |
RB90070 | 900 | 1050 | 969 | 70 | 4 | 5 | 937 | 1001 | 494 | 1490 |
RB1000110 | 1000 | 1250 | 1114 | 110 | 6 | 6 | 1057 | 1171 | 1220 | 3220 |
RB1250110 | 1250 | 1500 | 1365.8 | 110 | 6 | 6 | 1308 | 1423 | 1350 | 3970 |
