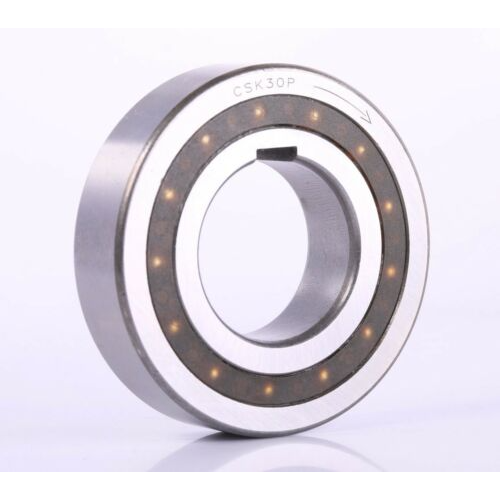

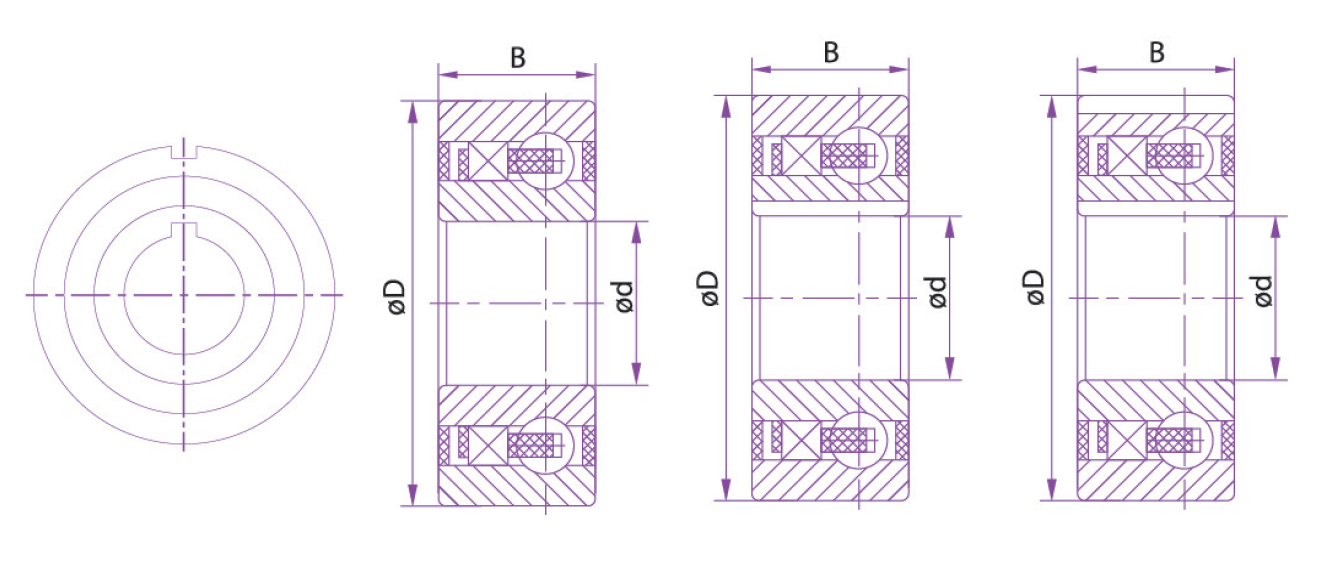

CSK單向離合器軸承,外型尺寸與62系列深溝球軸承完全相同,因而可達到非常高的互換性。根據內圈加工鍵槽而有CSK..P與內外圈都有鍵槽的CSK..PP系列。根據應用的不同可選用開放式或出廠已注脂帶雙面密封圈。
型號 Bearing No. | 外形尺寸 Boundary dimensions | 扭矩 | 基本額定 Basic load ratings | 允許回轉數 Limit speed |
|
內圈 | 外圈 |
d | D | B | TKN | 動負荷 | 靜負荷 | 潤滑脂 Grease | 油潤滑 Oil | 潤滑脂 Grease | 油潤滑 Oil |
mm | Nm | Cr(KN) | Cor(KN) | rpm*1000 |
CSK8 | 8 | 22 | 9 | 2 | 3.28 | 0.86 | 15 | 15 | 15 | 15 |
CSK10 | 10 | 30 | 9 | 5 | 5.5 | 2.3 | 11 | - | - | - |
CSK12(6201) | 12 | 32 | 10 | 7.5 | 6.1 | 2.77 | 10 | 11 | 5.5 | 6.5 |
CSK15(6202) | 15 | 35 | 11 | 13.5 | 7.4 | 3.42 | 8.4 | 9.4 | 5 | 6 |
CSK17(6203) | 17 | 40 | 12 | 24.5 | 7.9 | 3.8 | 7.35 | 7.8 | 4.2 | 5.2 |
CSK20(6204) | 20 | 47 | 14 | 40 | 9.4 | 4.46 | 6 | 7.8 | 4.2 | 5.2 |
CSK25(6205) | 25 | 52 | 15 | 68 | 10.7 | 5.46 | 5.2 | 5.9 | 3.4 | 4.2 |
CSK30(6206) | 30 | 62 | 16 | 110 | 11.7 | 6.45 | 4.2 | 5 | 2.8 | 3.5 |
CSK35(6207) | 35 | 72 | 17 | 140 | 12.6 | 7.28 | 3.6 | 4 | 2.2 | 2.8 |
CSK40 | 40 | 80 | 22 | 260 | 15.54 | 12.25 | 3 | 3.8 | 2 | 2.5 |
CSK6004 | 20 | 42 | 12 | 60 | 7.8 | 3.8 | 6 | - | - | - |
CSK6005 | 25 | 47 | 12 | 65 | 8.9 | 5.2 | 6 | - | - | - |
CSK6304 | 20 | 52 | 15 | 68 | 10.7 | 5.4 | 5.2 | - | - | - |
CSK6305 | 25 | 62 | 17 | 110 | 11.7 | 6.46 | 4.2 | - | - | - |
CSK6306 | 30 | 72 | 19 | 140 | 12.6 | 7.28 | 3.6 | - | - | - |
CSK12 2RS | 12 | 32 | 14 | 7.5 | 6.1 | 2.77 | 10 | 11 | 5.5 | 6.5 |
CSK15 2RS | 15 | 35 | 16 | 13.5 | 7.4 | 3.42 | 8.4 | 9.4 | 5 | 6 |
CSK17 2RS | 17 | 40 | 17 | 24.5 | 7.9 | 3.8 | 7.35 | 7.8 | 4.2 | 5.2 |
CSK20 2RS | 20 | 47 | 19 | 40 | 9.4 | 4.46 | 6 | 7.8 | 4.2 | 5.2 |
CSK25 2RS | 25 | 52 | 20 | 68 | 10.7 | 5.46 | 5.2 | 5.9 | 3.4 | 4.2 |
CSK30 2RS | 30 | 62 | 21 | 110 | 11.7 | 6.45 | 4.2 | 5 | 2.8 | 3.5 |
CSK35 2RS | 35 | 72 | 22 | 140 | 12.6 | 7.28 | 3.6 | 4 | 2.2 | 2.8 |
CSK40 2RS | 40 | 80 | 27 | 260 | 15.54 | 12.25 | 3 | 3.8 | 2 | 2.5 |
OW6004 2RS | 20 | 42 | 14 | 50 | 7.8 | 3.8 | 6 | - | - | - |
OW6006 2RS | 30 | 55 | 14 | 80 | 13.2 | 8.3 | 4 | - | - | - |
OW6205 2RS | 25 | 52 | 15 | 60 | 13 | 8 | 5.2 | 5.9 | 3.4 | 4.2 |
|
|
|
|
|
|
|
|
|
|
|
型號 Bearing No. | 外形尺寸 Boundary dimensions | 扭矩 | 基本額定 Basic load ratings | 允許回轉數 Limit speed |
|
內圈 | 外圈 |
d | D | B | TKN | 動負荷 | 靜負荷 | 潤滑脂 Grease | 油潤滑 Oil | 潤滑脂 Grease | 油潤滑 Oil |
mm | Nm | Cr(KN) | Cor(KN) | rpm*1000 |
CSK10P | 10 | 30 | 9 | 5 | 5.5 | 2.3 | 11 | - | - | - |
CSK12P | 12 | 32 | 10 | 7.5 | 6.1 | 2.77 | 10 | 11 | 5.5 | 6.5 |
CSK15P | 15 | 35 | 11 | 13.5 | 7.4 | 3.42 | 8.4 | 9.4 | 5 | 6 |
CSK17P | 17 | 40 | 12 | 24.5 | 7.9 | 3.8 | 7.35 | 7.8 | 4.2 | 5.2 |
CSK20P | 20 | 47 | 14 | 40 | 9.4 | 4.46 | 6 | 7.8 | 4.2 | 5.2 |
CSK25P | 25 | 52 | 15 | 68 | 10.7 | 5.46 | 5.2 | 5.9 | 3.4 | 4.2 |
CSK30P | 30 | 62 | 16 | 110 | 11.7 | 6.45 | 4.2 | 5 | 2.8 | 3.5 |
CSK35P | 35 | 72 | 17 | 140 | 12.6 | 7.28 | 3.6 | 4 | 2.2 | 2.8 |
CSK40P | 40 | 80 | 22 | 260 | 15.54 | 12.25 | 3 | 3.8 | 2 | 2.5 |
CSK10PP | 10 | 30 | 9 | 5 | 5.5 | 2.3 | 11 | - | - | - |
CSK12PP | 12 | 32 | 10 | 7.5 | 6.1 | 2.77 | 10 | 11 | 5.5 | 6.5 |
CSK15PP | 15 | 35 | 11 | 13.5 | 7.4 | 3.42 | 8.4 | 9.4 | 5 | 6 |
CSK17PP | 17 | 40 | 12 | 24.5 | 7.9 | 3.8 | 7.35 | 7.8 | 4.2 | 5.2 |
CSK20PP | 20 | 47 | 14 | 40 | 9.4 | 4.46 | 6 | 7.8 | 4.2 | 5.2 |
CSK25PP | 25 | 52 | 15 | 68 | 10.7 | 5.46 | 5.2 | 5.9 | 3.4 | 4.2 |
CSK30PP | 30 | 62 | 16 | 110 | 11.7 | 6.45 | 4.2 | 5 | 2.8 | 3.5 |
CSK35PP | 35 | 72 | 17 | 140 | 12.6 | 7.28 | 3.6 | 4 | 2.2 | 2.8 |
CSK40PP | 40 | 80 | 22 | 260 | 15.54 | 12.25 | 3 | 3.8 | 2 | 2.5 |
